Nakanuma Art Screen Co.,Ltd.／Products／Printing solution

～Alternative display of 2 different patterns～

[Garalit print] Pattern change via change of transmitted light and reflected

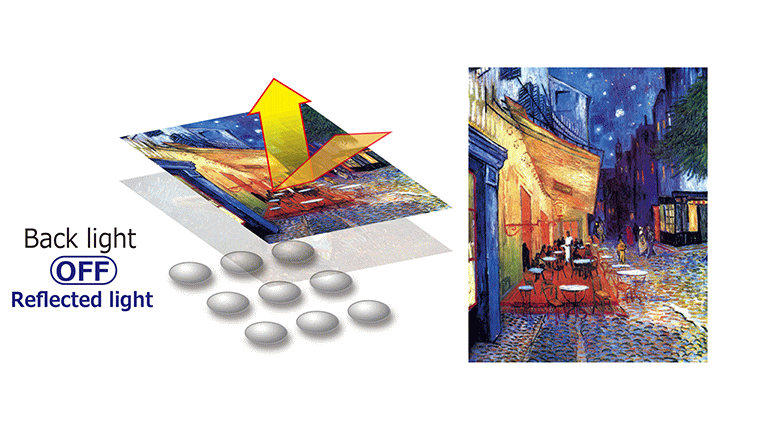

Structure of Garalit

Garalit Printing is a new kind of printing technology which means in the screen printing process, two kinds of patterns can be shown by one sheet of mask. This kind of technology can be used in the field such as automobile panels or the touch panel of consumer electronics.

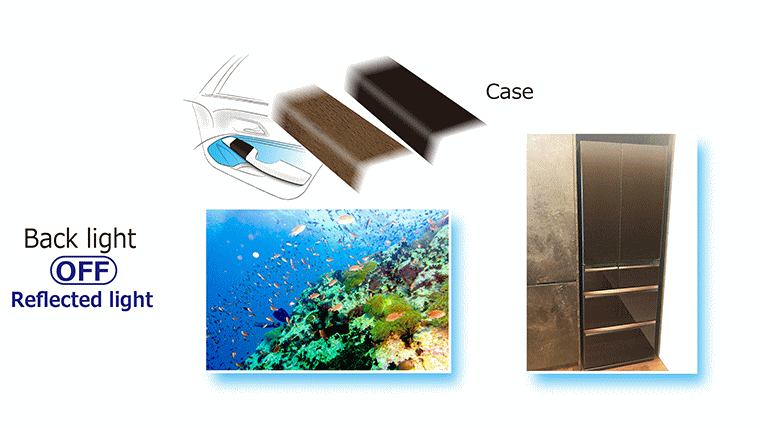

Garalit can be applied to produce icon image of appliance like refrigerator.

Two kinds of pattern can be printed on one piece of sheet via screen printing.
Via back light switch(ON⇔OFF), two different patterns can be alternatively shown.

■ Color changing

～Collaboration with light～

[Color changing] Alternative change of up to 3 patterns.

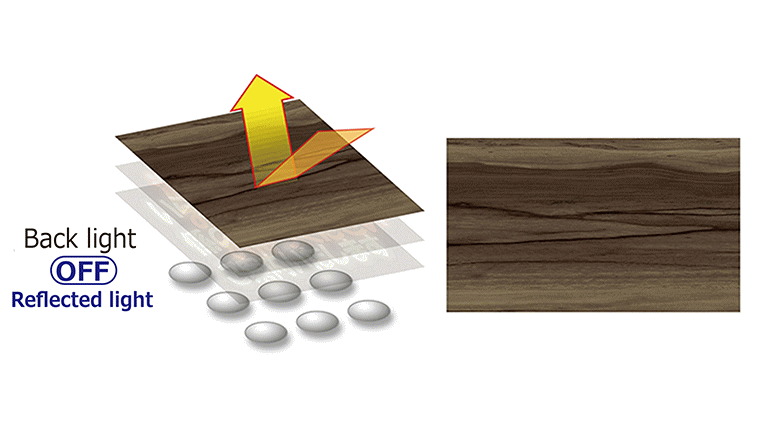

Structure of Color changing

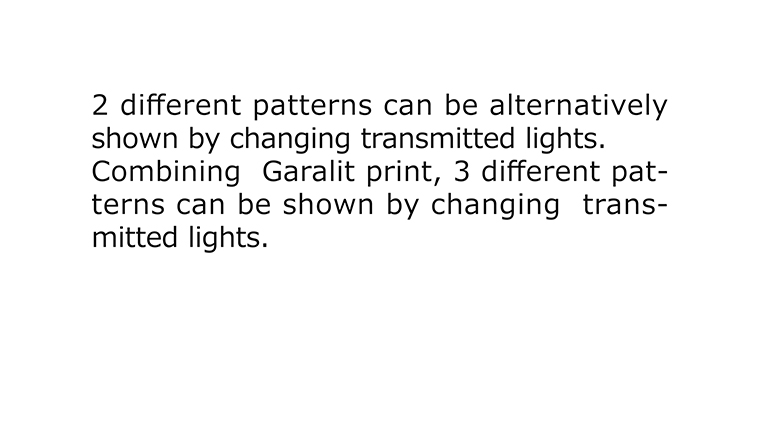

[Color changing] Patterns can be changed via color change of back lights. Combining the technique of Garalit print and full-color printing, up to 3 kinds of pattern can be alternatively showned.

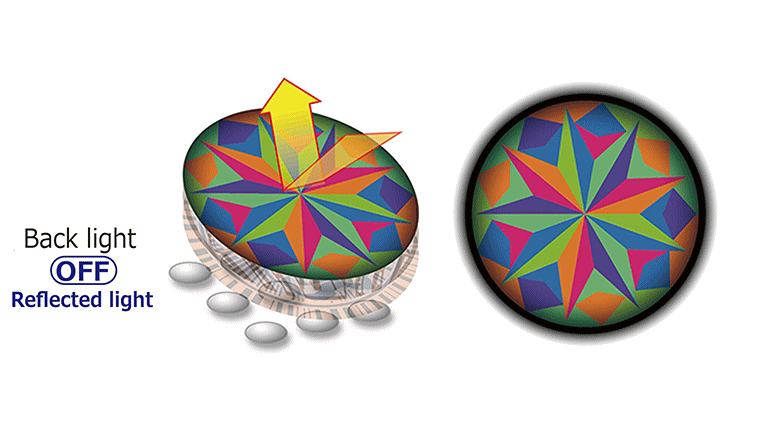

Combining the technique of Garalit print,up to 3 kinds of pattern can be alternatively showned.

By changing the transmitted lights,
two kinds of patterns are achieved.

■ Ductile mirror sheet printing

～Ductile mirror sheet printing～

[Ductile mirror sheet printing] Forming in metal image can be achieved.

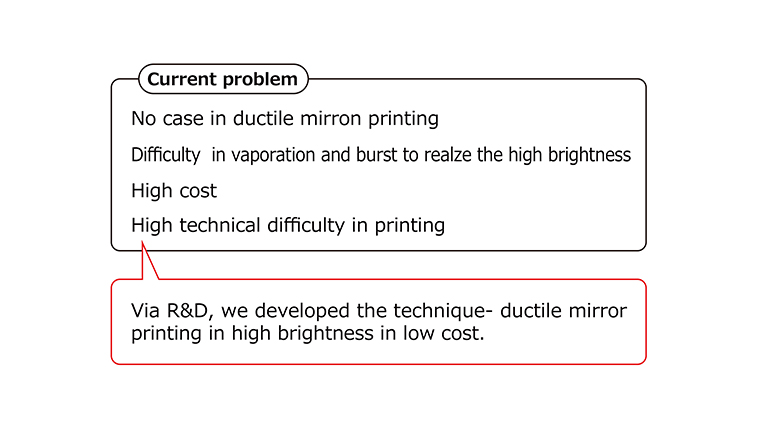

[Current problem] ・No case in ductile mirron printing ・Difficulty in vaporation and burst to realze the high brightness ・High cost ・High technical difficulty in printing Via R&D, we developed the technique- ductile mirror printing in high brightness in low cost.

Via R&D, we developed the technique- ductile mirror printing in high brightness and firm quality during forming.
Except full image, partial metal-image can be printed and formed with high brightness.

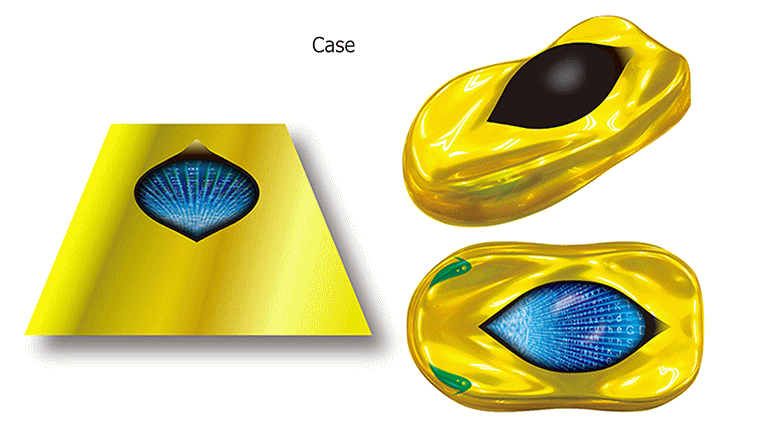

Product example via Ductile mirror sheet printing.

Via our special treatment,
products in high brightness
can be realized via combination of printing technique and forming.

■ Real texture sheet

～Nearly same texture as original～

Via MARVELART technique, printing sheet can possess the nearly same appearance as real one.

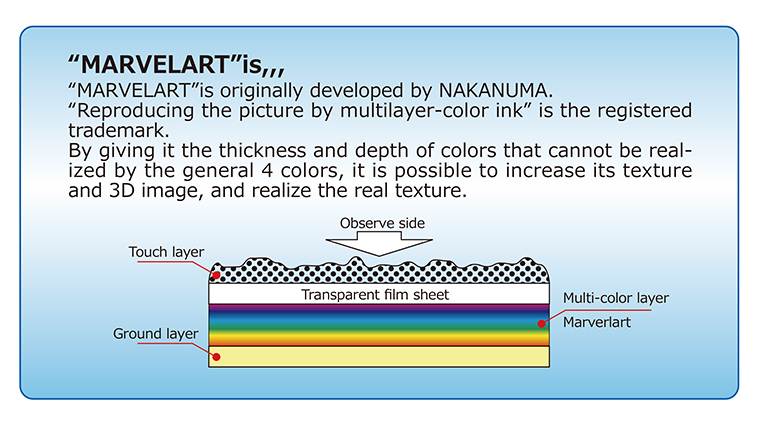

Structure of Via MARVELART

[Real Texture Sheet] We made a full play of our advanced screen printing technology to reproduce the real texture, and realized the ultra-fine accuracy. By making a full play of this process, packages and bottles could be expressed in a unique way, and we could enjoy the high texture and beautiful colors.

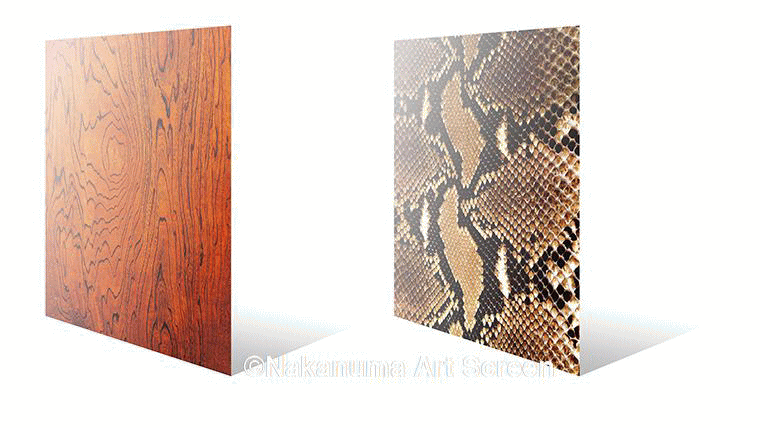

Product example (product case, operation panel) via Real Material Sheet.

Printing productes can be vivid to real goods via our own R&D.

■ Real material sheet

～Excellent cost performance via screen printing～

[Real Material Sheet] can be applied to virous materials or process via screen printing.

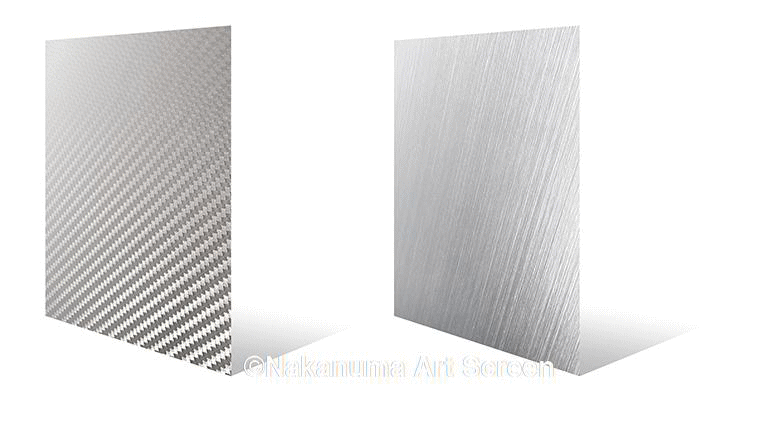

Product example ( smart phone case) via Real Material Sheet

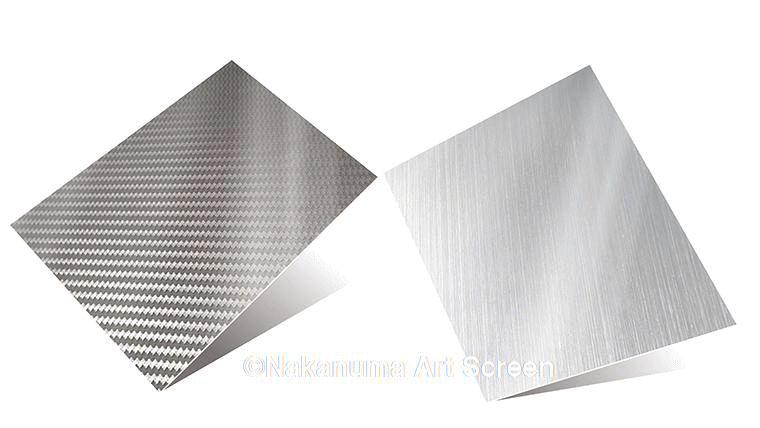

Product example (product case, operation panel) via Real Material Sheet.

Via screen printing insteal of expensive mode,
high cost-performance effect can be achieved. By using different kinds of inks and materials,
it is possible to make various kinds of printing.

■ Blackout BL

～Full color display via black light～

[Blackout BL]By using of black light, the colorful design can be shown up.

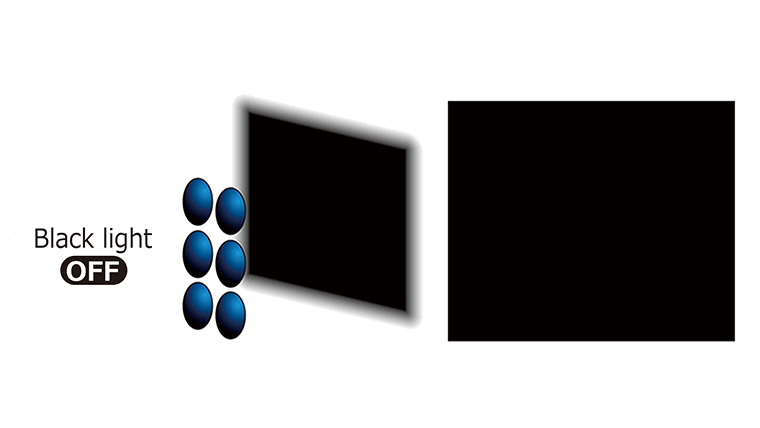

Structure of Blackout BL

[Blackout BL]It is an amazing technology that can make it possible to show colorful printing patterns because until now we can only show it in one color.

Design in full color can be shown via black light.
The usage is under exploring.
